Vertical Lift

Our Vertical Center Lift is a safe and affordable solution for vertically lifting fiber core rolls.

Vertical Center Lift

Models: S3VL (3" core), S6VL (6" core)
Capacities: up to 2,000 lbs.
Overall Length: 11"

Benefits

  • ​No tools, air or electric required to operate
  • Protect operators from injury and products from damage
  • Unlimited cycles per hour
  • ​Easy to maintain
  • Long lasting

Functions

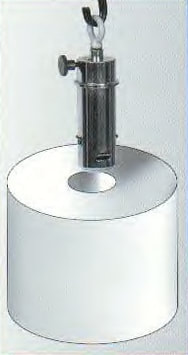

Insert center lift into core until flange hits face of roll. Then lift the center lift from the yellow eye-hook, and the mechanical teeth will immediately engage into the core. The teeth cannot disengage while supporting the weight of the roll. Once the roll has been maneuvered to the desired position, the next step is removal of the center lift. An easy twist of the knurled knob will hold the teeth from engaging the core and the center lift can be removed.

*Custom Vertical Center Lifts are available to handle a variety of core sizes and materials.
Caution: Vertical Center Lift must be hung on an air or electric hoist and used for vertical lifting only. No horizontal to vertical lifting or tipping.
